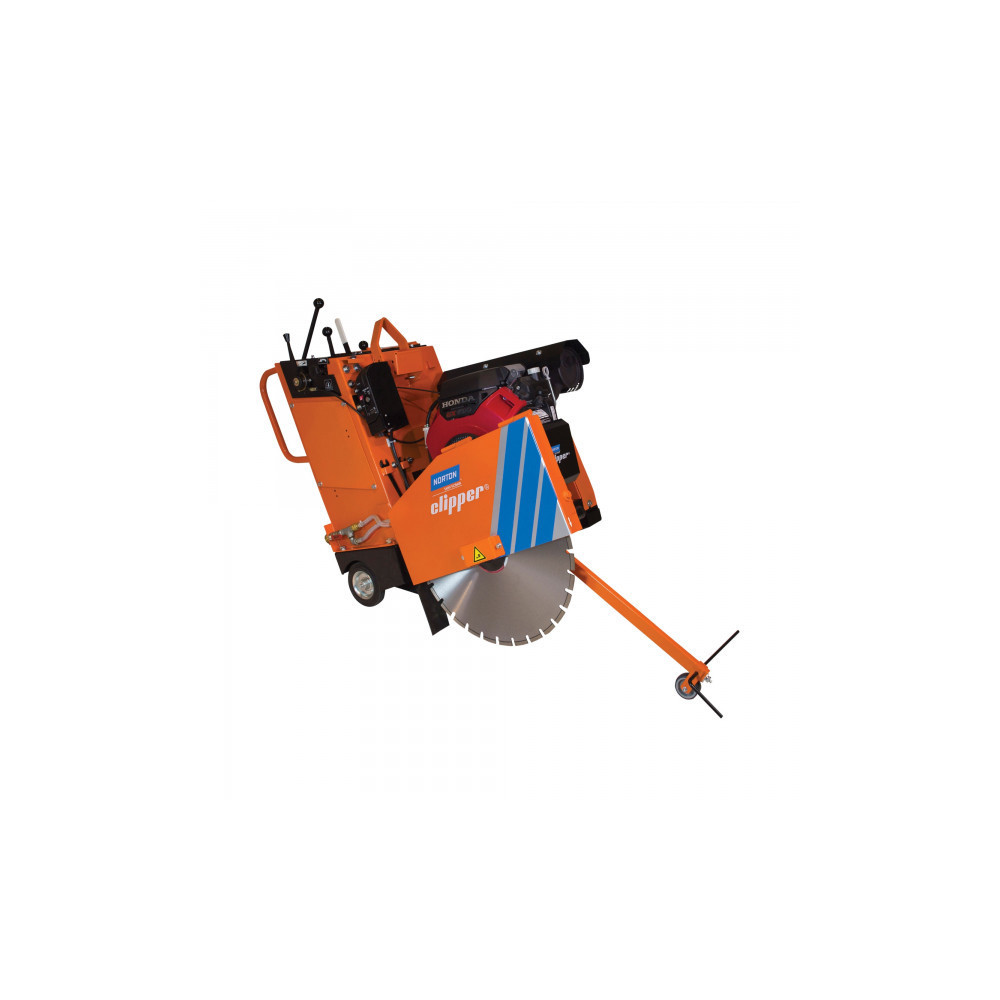

NORTON CLIPPER CSB1 D13 combustion floor cutting machine
Reference
70184613925
Reference
Availability
Technical Data
- Weight: 255 kg
- Dimensions: 1200 x 600 x 1040 mm
- Engine power: 9,6 kW (13 HP)
- Startup: Korba
- Engine: Hatz 1d81 z
NORTON CLIPPER CSB1 D13 combustion floor cutter - maximum efficiency in difficult conditions
The NORTON CLIPPER CSB1 D13 combustion floor cutter is a reliable tool that enables precise cutting of concrete and asphalt floors. Ideal for professionals in the construction and road construction industry, it provides high performance in the most demanding conditions. Thanks to its sturdy design and efficient Hatz 1d81 z engine, the unit is made for hard work while providing comfort and excellent cutting control.
Compact solution with modern features
The NORTON CLIPPER CSB1 D13 cutter is equipped with a 9.6 kW (13 hp) motor for efficient and fast cutting of hard materials. The engine' s crank start ensures reliability even in harsh outdoor conditions, while its compact dimensions of 1200 x 600 x 1040 mm and relatively low weight of 255 kg make it easy to transport and maneuver on the job site. The mounted blade with a diameter of 500 mm allows a maximum cutting depth of up to 190 mm. Thanks to this, the cutter can effectively cope with various surface thicknesses, ensuring accuracy and speed of work.
The rotational speed of 1950 min-1 guarantees fast and even cutting, and the large water tank - 25 l - facilitates cooling of the disc, which increases its life and reduces the risk of overheating. A specially designed system to minimize hand/arm vibration - 5.08 m/s² - allows you to work comfortably for longer periods of time. In addition, the noise level of 114 dB(A) of sound power and 101 dB(A) of sound pressure allows the machine to work without overtaxing the environment.
NORTON CLIPPER CSB1 D13 combustion floor cutter - available at NORWIT.PL!
Take advantage of the offer for NORTON CLIPPER CSB1 D13 at NORWIT.PL and enjoy reliability and service support. Discover other quality tools in the category Cutters without driving. We guarantee full advice, competitive prices and fast delivery!
Data sheet
- Weight
- 255 kg
- Dimensions
- 1200 x 600 x 1040 mm
- Engine power
- 9,6 kW (13 HP)
- Startup
- Korba
- Engine
- Hatz 1d81 z
- Water tank
- 25 l
- Speed
- 1950 min-1
- Disc diameter
- 500 mm
- Maximum depth of cut
- 190 mm
- Disc bore diameter
- 25,4 mm
- Hand/arm vibration
- 5,08 m/s²
- Sound power level / sound pressure
- 114 dBA / 101 dBA
12-miesięczna Gwarancja Norton Clipper
Norton Clipper zapewnia 12 miesięcy ochrony gwarancyjnej na wszystkie swoje produkty. Roczna gwarancja obejmuje wszystkie elementy i podzespoły, co daje pewność niezawodności każdego zakupu.
Wybierając produkty Norton Clipper, masz pewność inwestycji w jakość i trwałość, z pełną ochroną przez cały rok od daty zakupu.
