Niwelator laserowy Nivel System NL540 - ZESTAW łata LS-24 statyw SJJ32 system MC-1D
Reference
MC-1D-Clamps-zestaw2
Reference
Availability
Technical Data
- Weight: 3 kg
- Dimensions: 206 x 206 x 211 mm
- Brand: Nivel System
- Power supply: 7,4 V (Li-ion, 4000 mAh)
- Operating temperature range: -20 °C do +50 °C

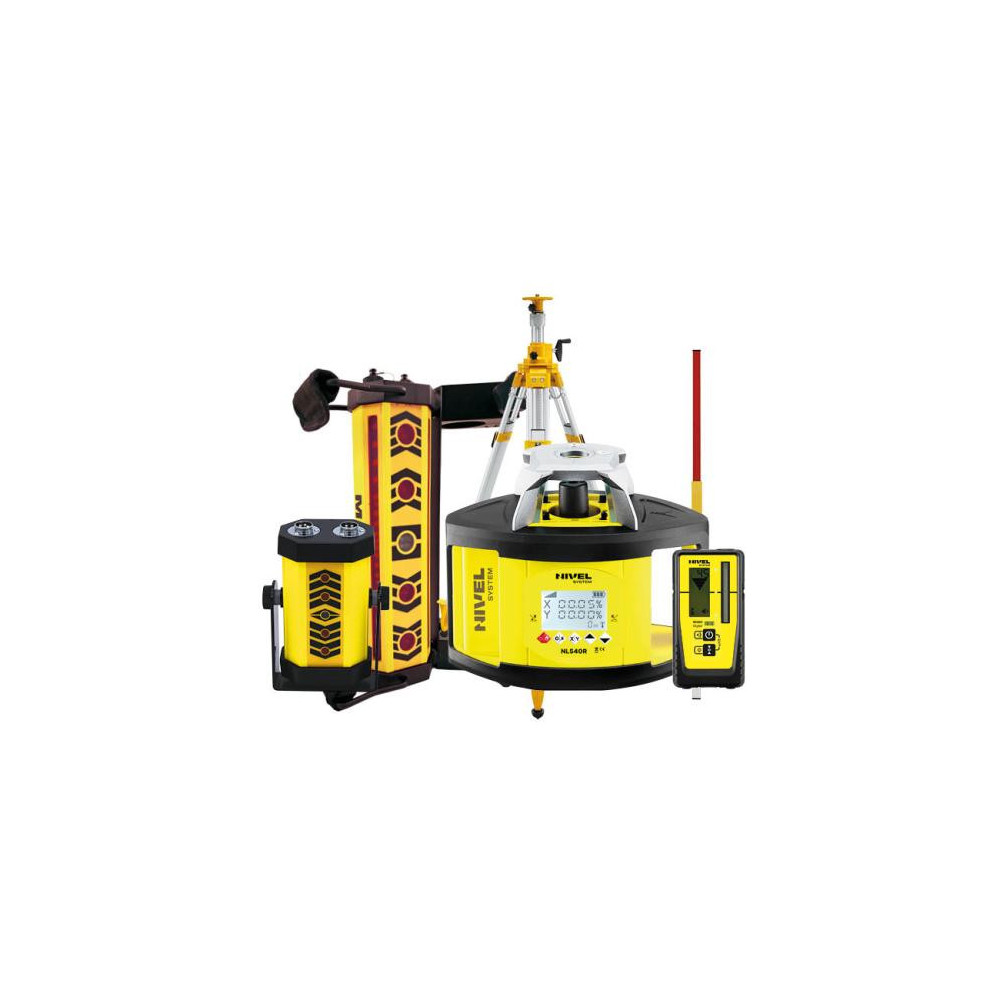

Nivel System NL540 laser leveler KIT - KIT summer LS-24 + tripod SJJ32 + system MC-1D clamps - precise measurements at the highest level.
Choose Nivel System NL540, a professional laser leveler created for demanding users. Ideal for use in construction, surveying and interior work. The set includes the leveler, SJJ32 tripod, LS-24 balance and MC-1D clamp system, which ensures full functionality and convenience of use from the first day. It guarantees accuracy, reliability and high work efficiency in all conditions.
Compact solution with modern features
Nivel System NL540 is a rugged, versatile instrument with compact dimensions of 206 x 206 x 211 mm and a weight of just 3 kg. The advanced 7.4V (Li-ion, 4000 mAh) power supply guarantees long-lasting operation in variable weather conditions, in temperature ranges from -20°C to +50°C. With an IP54 rating, the device is resistant to dust and rain, making it an ideal partner in harsh field conditions.
Its wide operating range of up to 500 m (diameter) and exceptional leveling accuracy of ±1.0 mm/10 m allow precise measurements even over larger areas. The leveler generates one horizontal and one vertical plane, which rotate in a 360° radius. The ability to tilt the planes ±10% in the X and Y axes, as well as the variable spinning speed of the head (max. 600 rpm) ensure versatility and precision.
The device is equipped with a high-quality red laser(635 nm, class 2), which guarantees beam visibility even in difficult lighting conditions. The scanning function in the range of 0-10°-45°-90°-180° allows you to adjust the work to a specific task, and operation via remote control provides maximum comfort of use.
Nivel System NL540 - available at NORWIT.PL!
Choosing Nivel System NL540 in our store NORWIT.PL, you get quality guarantee, full warranty service and fast and professional service. Also discover other products from the category Levelers measurements and find the perfect solution for you! Raise the quality and efficiency of your measurements today.
Data sheet
- Weight
- 3 kg
- Dimensions
- 206 x 206 x 211 mm
- Brand
- Nivel System
- Power supply
- 7,4 V (Li-ion, 4000 mAh)
- Operating temperature range
- -20 °C do +50 °C
- Leveling accuracy
- ± 1,0 mm / 10 m
- Slope of the planes
- ± 10% (oś x, oś y), manualne
- Generated planes
- 1 x poziomo (360°), 1 x pionowo (360°)
- Working range
- 500 m (średnica)
- Type of laser beam
- Laser czerwony (635 nm), klasa 2
- Resistance class
- Ip54
- Kolor lasera
- Red
- Scanning
- 0-10°-45°-90°-180°
- Head spin speed
- Zmienna, maks. 600 obr./min
- Remote control
- Tak
Gwarancja Nivel System: 12 miesięcy ochrony z możliwością przedłużenia
Firma Nivel System oferuje swoim klientom 12 miesięcy ochrony gwarancyjnej na wszystkie swoje produkty. Dodatkowo, istnieje możliwość przedłużenia gwarancji do 2 lat po zarejestrowaniu produktu. Dzięki temu, użytkownicy mogą cieszyć się jeszcze dłuższym okresem niezawodności i wsparcia technicznego.
Roczna gwarancja obejmuje wszystkie komponenty i podzespoły, a rejestracja produktu pozwala na wydłużenie ochrony do 24 miesięcy. To dodatkowe zabezpieczenie zapewnia bezproblemowe użytkowanie przez dłuższy czas.
