Niwelator laserowy Nivel System NL520R DIGITAL - ZESTAW łata LS-24 statyw SJJ1
Reference
NL520R-DIGITAL-zestaw1
Reference
Availability
Technical Data
- Weight: 3 kg
- Dimensions: 206 x 206 x 211 mm
- Brand: Nivel System
- Power supply: Dc 8,4 V (1000ma), akumulatorki Li-ion 7,4 V (4000 mAh)
- Operating temperature range: -20 °C do +50 °C

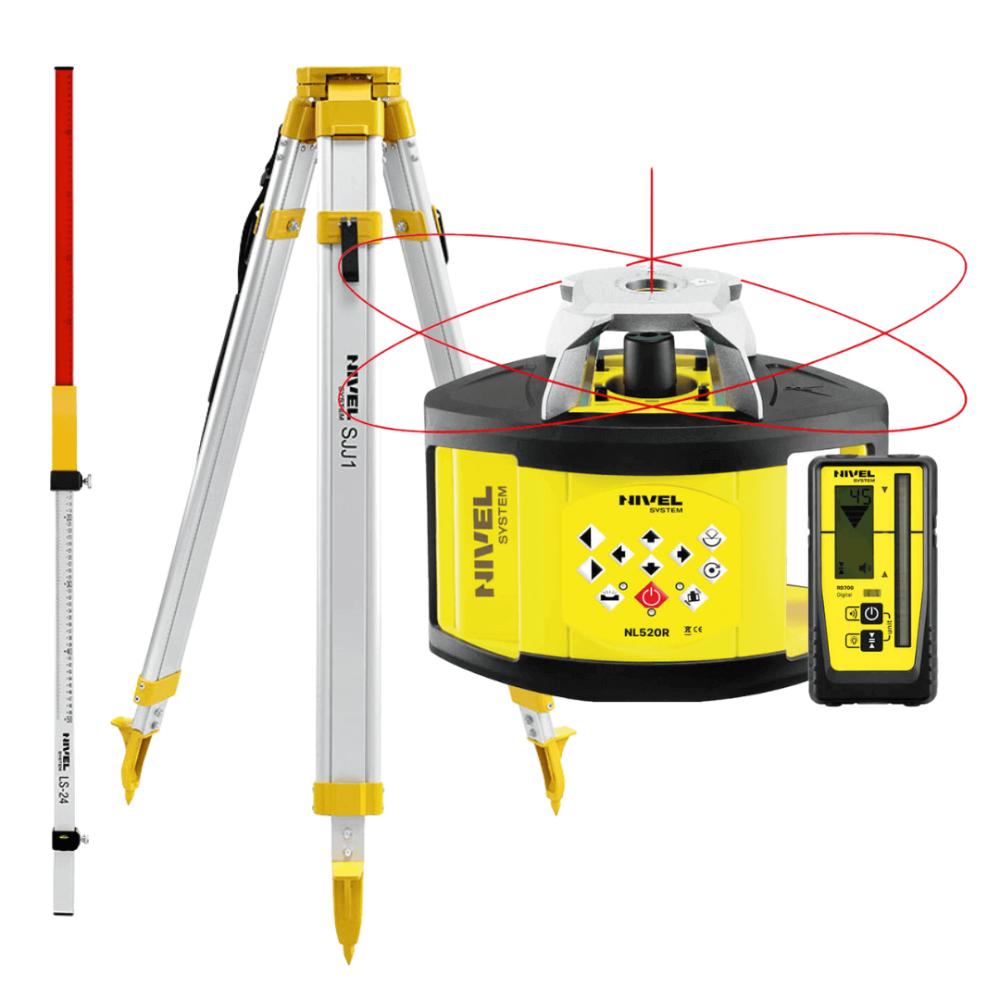

Laser leveler Nivel System NL 520R DIGITAL - KIT summer LS-24 + tripod SJJ1 - Professional tool with exceptional precision.
Nivel System NL 520R DIGITAL laser level er is the ideal solution for professionals in construction and surveying looking for equipment that combines reliability, ease of use and superior accuracy. This complete set including a leveler, LS-24 staff and SJJ1 tripod is perfect for precise leveling and measuring - regardless of terrain and weather conditions.
Compact solution with modern features
The leveler features dimensions of 206 x 206 x 211 mm and a weight of 3 kg, making it extremely mobile and convenient to transport. The technology based on DC 8.4V (1000mA) power supply with Li-ion 7.4V (4000mAh) batteries allows hours of operation, ensuring full reliability in the harshest conditions. The leveler operates in a temperature range from -20°C to +50°C, making it resistant to various weather conditions.
The device features a high leveling accuracy of ± 1.0 mm/10 m and a self-leveling range of ± 5°. The function of manually adjusting the inclination of the planes ± 10% (X and Y axes) allows precise adjustment to specific user requirements. The leveler generates 1 horizontal plane (360°) and 1 vertical plane (360°), enabling efficient and versatile use in a variety of measurement applications.
The working range of the device is an impressive 500 m (diameter), which, combined with the 635 nm class (class 2) red laser beam, guarantees excellent visibility even over long distances. The laser works with the RD 700 receiver, maximizing the precision of work. In addition, the device is equipped with a remote control (infrared), which greatly increases the convenience of operation. The scanning function with settings of 0-10°-45°-90°-180° and variable head spinning speed (max. 600 rpm) make this model a versatile choice for demanding users.
With an IP54 rating, the leveler is effectively protected against dust and water, making it durable even in harsh construction site conditions.
Laser leveler Nivel System NL 520R DIGITAL - KIT summer LS-24 + tripod SJJ1 - available at NORWIT.PL!
Bet on quality and professionalism with laser leveler Nivel System NL 520R DIGITAL! Buying in our store, you gain the certainty of warranty service and a wide selection of accessories and measuring devices. See also other products in the category Levelers measurements and find the perfect device for your needs!
Data sheet
- Weight
- 3 kg
- Dimensions
- 206 x 206 x 211 mm
- Brand
- Nivel System
- Power supply
- Dc 8,4 V (1000ma), akumulatorki Li-ion 7,4 V (4000 mAh)
- Operating temperature range
- -20 °C do +50 °C
- Leveling accuracy
- ± 1,0 mm / 10 m
- Self-leveling range
- +/- 5°
- Slope of the planes
- ± 10% (oś x, oś y), manualne
- Generated planes
- 1 x poziomo (360°), 1 x pionowo (360°)
- Working range
- 500 m (średnica)
- Type of laser beam
- Laser czerwony (635 nm), klasa 2
- Resistance class
- Ip54
- Kolor lasera
- Red
- Cooperation with the receiver
- Rd 700
- Scanning
- 0-10°-45°-90°-180°
- Head spin speed
- Zmienna, maks. 600 obr./min
- Remote control
- Tak (podczerwień)
Gwarancja Nivel System: 12 miesięcy ochrony z możliwością przedłużenia
Firma Nivel System oferuje swoim klientom 12 miesięcy ochrony gwarancyjnej na wszystkie swoje produkty. Dodatkowo, istnieje możliwość przedłużenia gwarancji do 2 lat po zarejestrowaniu produktu. Dzięki temu, użytkownicy mogą cieszyć się jeszcze dłuższym okresem niezawodności i wsparcia technicznego.
Roczna gwarancja obejmuje wszystkie komponenty i podzespoły, a rejestracja produktu pozwala na wydłużenie ochrony do 24 miesięcy. To dodatkowe zabezpieczenie zapewnia bezproblemowe użytkowanie przez dłuższy czas.
