Nivel System NL520R DIGITAL red rotary self-leveling laser leveler
Reference
NL520R DIGITAL
Reference
Availability
Technical Data
- Weight: 3 kg
- Dimensions: 206 x 206 x 211 mm
- Brand: Nivel System
- Power supply: Dc 8,4 V (1000 ma), akumulatorki Li-ion 7,4 V (4000 mAh)
- Operating temperature range: -20 °C do +50 °C
You might also like
-
Telescopic staff (3.5 m) Nivel System LS-35
zł312.00 tax incl. 253,66 zł tax excl. -
Telescopic staff Nivel System LS-24
zł204.00 tax incl. 165,85 zł tax excl. -
Nivel System SJJ1 tripod
zł198.00 tax incl. 160,98 zł tax excl. -
Nivel System SJJ32 tripod
zł848.00 tax incl. 689,43 zł tax excl. -
Nivel System MC-1D CLAMPS machine control system
zł4,151.25 tax incl. 3375,00 zł tax excl. -
Nivel System MC-1D machine control system - MAGNETIC
zł3,848.67 tax incl. 3129,00 zł tax excl.

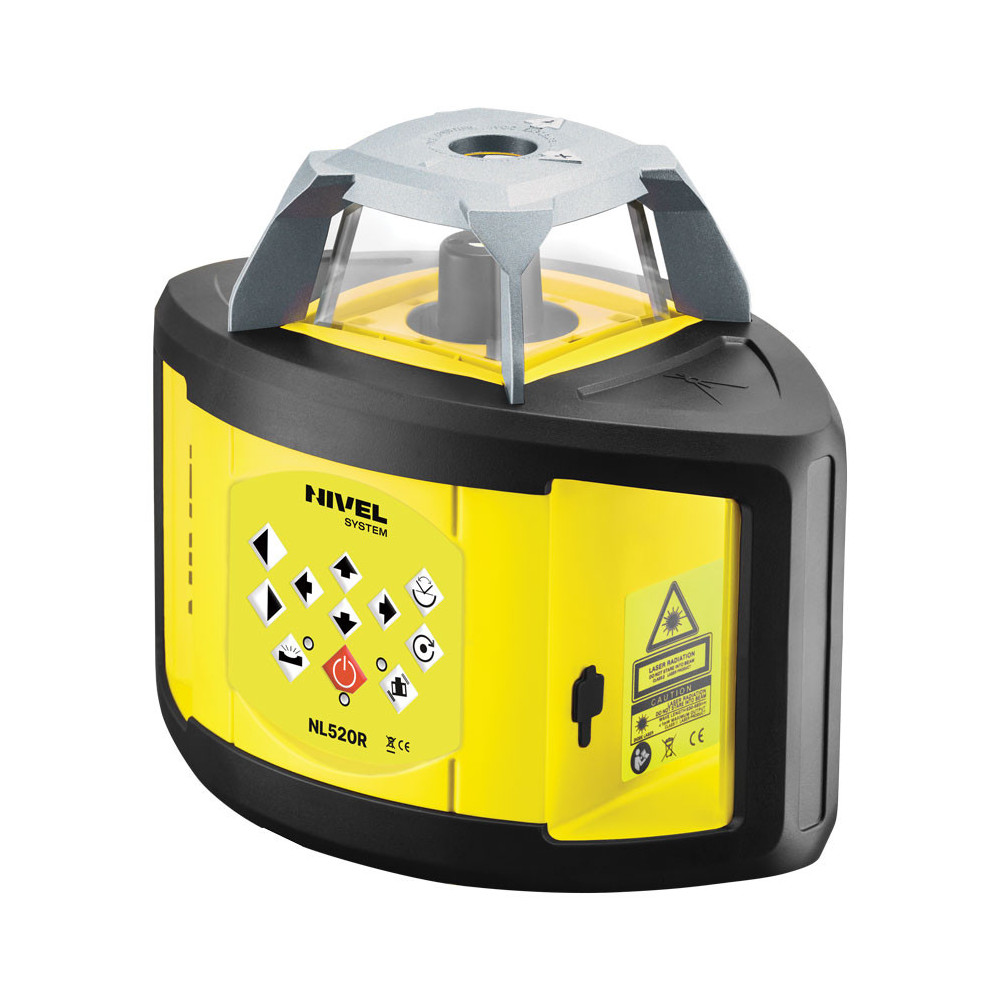

Nivel System NL520R DIGITAL red rotary self-leveling laser level - precise measurements in all conditions
Are you looking for a versatile and reliable measuring tool? Nivel System NL520R DIGITAL is a rotating, self-leveling red beam laser leveler, ideal for builders, surveyors and professional measurement companies. It provides high precision and work efficiency even in large areas. Perfect for earthworks, leveling or concrete structures.
Compact solution with modern features
The Nivel System NL520R offers compact dimensions of 206 x 206 x 211 mm and weighs just 3 kg, making it extremely easy to transport and install on the job site. Powered by long-lasting Li-Ion rechargeable batteries (7.4 V, 4000 mAh), the device can be operated for long periods of time. With the device you can operate in a wide range of operating temperatures: from -20°C to +50°C, which ensures that the leveler will perform well in all field conditions.

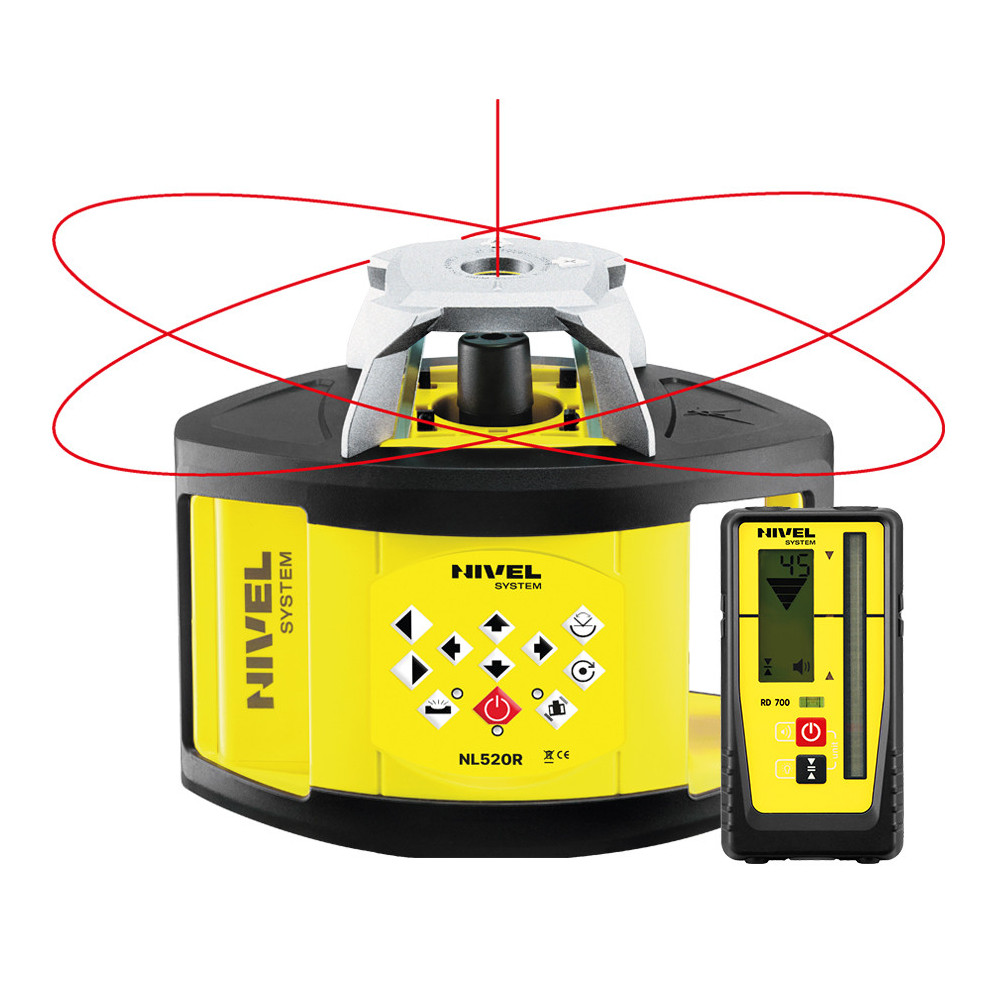

The working range of 500 m in diameter allows for fast and accurate measurements both vertically and horizontally. With a Class 2 (635 nm) red laser generating 1 horizontal and 1 vertical plane (360°), you can easily set levels and plumb lines on the construction site. A self-leveling system of +/- 5° and the ability to manually tilt planes by ± 10% in the X and Y axes are ideal to accommodate any type of project.
Modern technology allows the leveler to work with the RD 700 receiver, and the remote control provides full control over settings. The ability to change the spinning speed of the head with a maximum speed of 600 rpm , as well as the scanning function in several ranges of 0°, 10°, 45°, 90°, 180° gives incredible flexibility in work. The IP54 rating provides additional protection against dust and moisture, making the device extremely durable and reliable.
Nivel System NL520R DIGITAL laser leveler - available at NORWIT.PL!
Choosing Nivel System NL520R DIGITAL laser leveler in our store, you get guaranteed service, fast order processing and access to a wide range of measuring devices. Check out other products in the levelers measuring category now and choose the perfect equipment for your needs!
Data sheet
- Weight
- 3 kg
- Dimensions
- 206 x 206 x 211 mm
- Brand
- Nivel System
- Power supply
- Dc 8,4 V (1000 ma), akumulatorki Li-ion 7,4 V (4000 mAh)
- Operating temperature range
- -20 °C do +50 °C
- Leveling accuracy
- ± 1,0 mm / 10 m
- Self-leveling range
- +/- 5°
- Slope of the planes
- ± 10% (oś x, oś y), manualne
- Generated planes
- 1 x poziomo (360°), 1 x pionowo (360°)
- Working range
- 500 m (średnica)
- Type of laser beam
- Laser czerwony (635 nm), klasa 2
- Resistance class
- Ip54
- Kolor lasera
- Red
- Cooperation with the receiver
- Rd 700
- Scanning
- 0-10°-45°-90°-180°
- Head spin speed
- Zmienna, maks. 600 obr./min
- Remote control
- Tak
Specific References
- EAN13
- 5908263350137
Gwarancja Nivel System: 12 miesięcy ochrony z możliwością przedłużenia
Firma Nivel System oferuje swoim klientom 12 miesięcy ochrony gwarancyjnej na wszystkie swoje produkty. Dodatkowo, istnieje możliwość przedłużenia gwarancji do 2 lat po zarejestrowaniu produktu. Dzięki temu, użytkownicy mogą cieszyć się jeszcze dłuższym okresem niezawodności i wsparcia technicznego.
Roczna gwarancja obejmuje wszystkie komponenty i podzespoły, a rejestracja produktu pozwala na wydłużenie ochrony do 24 miesięcy. To dodatkowe zabezpieczenie zapewnia bezproblemowe użytkowanie przez dłuższy czas.
