Nivel System CL4D-G construction laser
Reference
CL4D-G
Reference
Availability
1Time to ship
Technical Data
- Weight: 900 g
- Dimensions: 125 x 75 x 140 mm
- Bluetooth receiver: Tak
- Brand: Nivel System
- Power supply: Li-ion 7,4 V (2600 mAh)

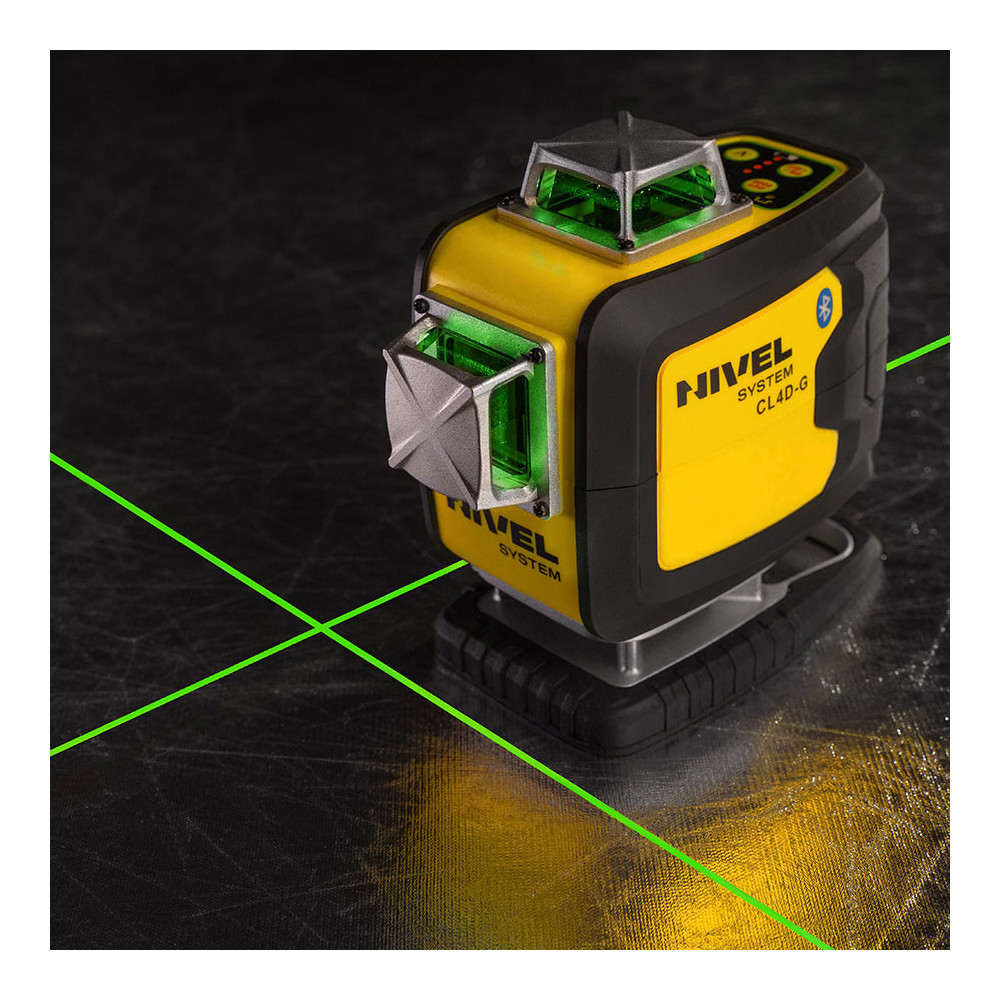

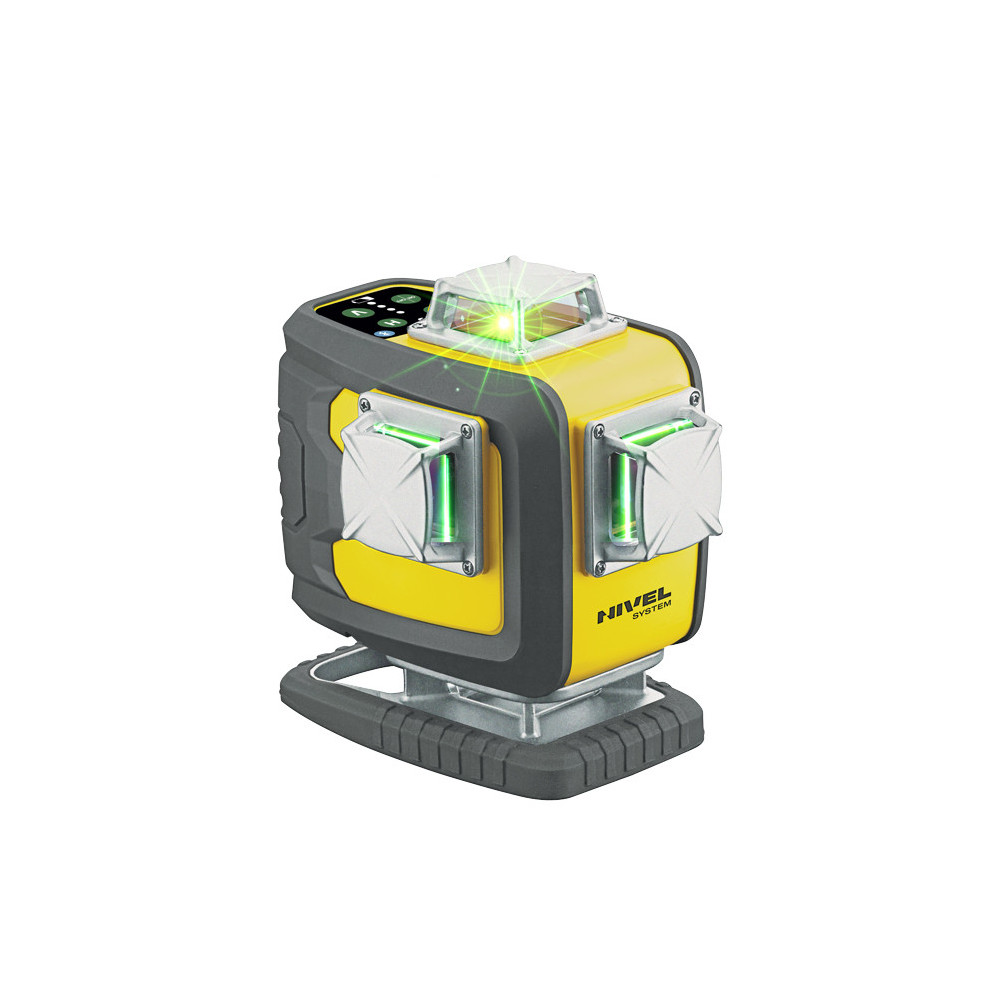

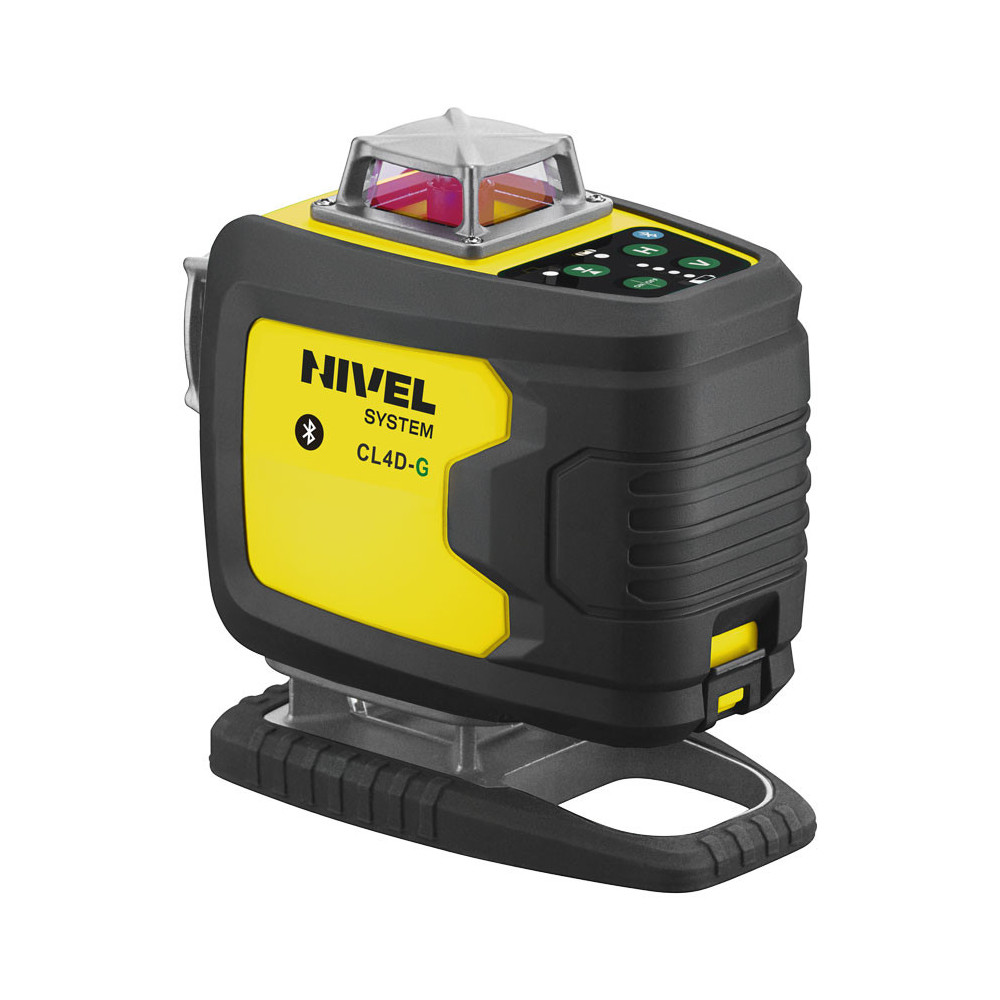

Nivel System CL4D-G construction laser - precision and reliability in any project
Nivel System CL4D-G construction laser is a professional tool that will meet the expectations of the most demanding construction teams. Thanks to its versatile applications, it is ideal for surveyors, engineers and finishing crews alike. It is distinguished by its green laser, which provides excellent line visibility even in bright working conditions. Precision, efficiency and durability are features that make it an invaluable support on any construction site.
Compact solution with modern features

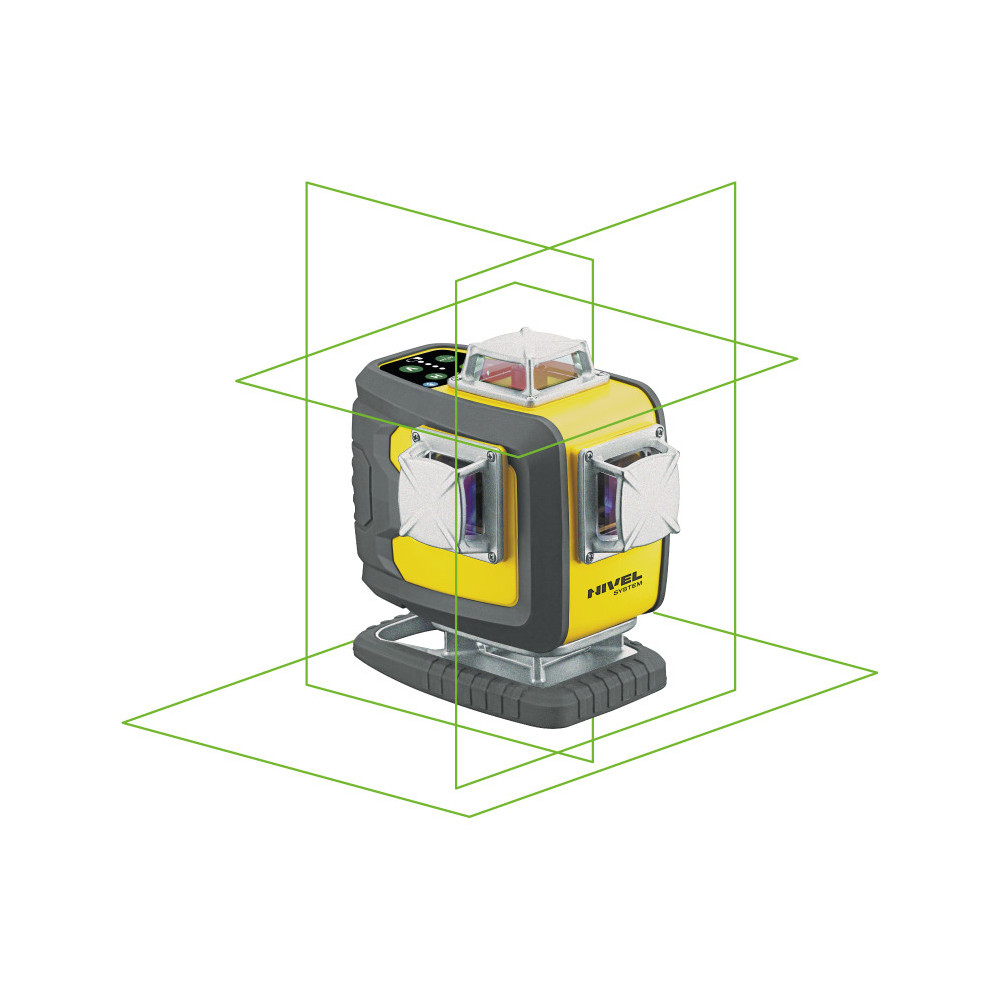

The Nivel System CL4D-G laser combines a compact design with dimensions of 125 x 75 x 140 mm and a weight of only 900 g, which makes it easy to transport and set up on the construction site. Equipped with 4 360° lines (two horizontal and two vertical planes), it provides precise measurements at any height. Its leveling accuracy of ± 1.0 mm/10 m and an operating range of 60 m (up to 140 m with sensor) ensure that contact with the farthest points on the construction site is always precise.
The device works with the CLS-3 receiver, which expands the possibilities of working in a larger area. The Bluetooth receiver provides convenient remote control of the device. The green laser (class 2, 515 nm) is clearer and more effective for working in different lighting conditions, and IP54 guarantees protection from dust and water, increasing the life of the device. As an added bonus, it can operate in extreme temperatures from -10°C to +50°C, making it a versatile tool ready for tough field conditions.
The built-in Li-ion 7.4V (2600 mAh) rechargeable battery ensures long-lasting operation without the need for frequent recharging, and the quick leveling system with ±4.0° range allows for a resilient and efficient start in any field conditions.
Nivel System CL4D-G - available at NORWIT.PL!
Laser Nivel System CL4D-G is available in the offer of NORWIT.PL store, which provides professional warranty service and a wide selection of measuring devices. We also invite you to familiarize yourself with other products in the category Cross line lasers.
Data sheet
- Weight
- 900 g
- Dimensions
- 125 x 75 x 140 mm
- Bluetooth receiver
- Tak
- Brand
- Nivel System
- Power supply
- Li-ion 7,4 V (2600 mAh)
- Operating temperature range
- -10 °C do +50 °C
- Leveling accuracy
- ± 1,0 mm / 10 m
- Self-leveling range
- ±4,0°
- Slope of the planes
- Tak
- Generated planes
- 2 x poziomo (360°), 2 x pionowo (360°)
- Tripod mount
- 1/4"
- Working range
- 60 m (140 m z czujnikiem) – średnica
- Type of laser beam
- Laser zielony (515 nm), klasa 2
- Resistance class
- Ip54
- Kolor lasera
- Green
- Cooperation with the receiver
- CLS-3
- Number of laser lines 360
- 4 linie
Gwarancja Nivel System: 12 miesięcy ochrony z możliwością przedłużenia
Firma Nivel System oferuje swoim klientom 12 miesięcy ochrony gwarancyjnej na wszystkie swoje produkty. Dodatkowo, istnieje możliwość przedłużenia gwarancji do 2 lat po zarejestrowaniu produktu. Dzięki temu, użytkownicy mogą cieszyć się jeszcze dłuższym okresem niezawodności i wsparcia technicznego.
Roczna gwarancja obejmuje wszystkie komponenty i podzespoły, a rejestracja produktu pozwala na wydłużenie ochrony do 24 miesięcy. To dodatkowe zabezpieczenie zapewnia bezproblemowe użytkowanie przez dłuższy czas.
