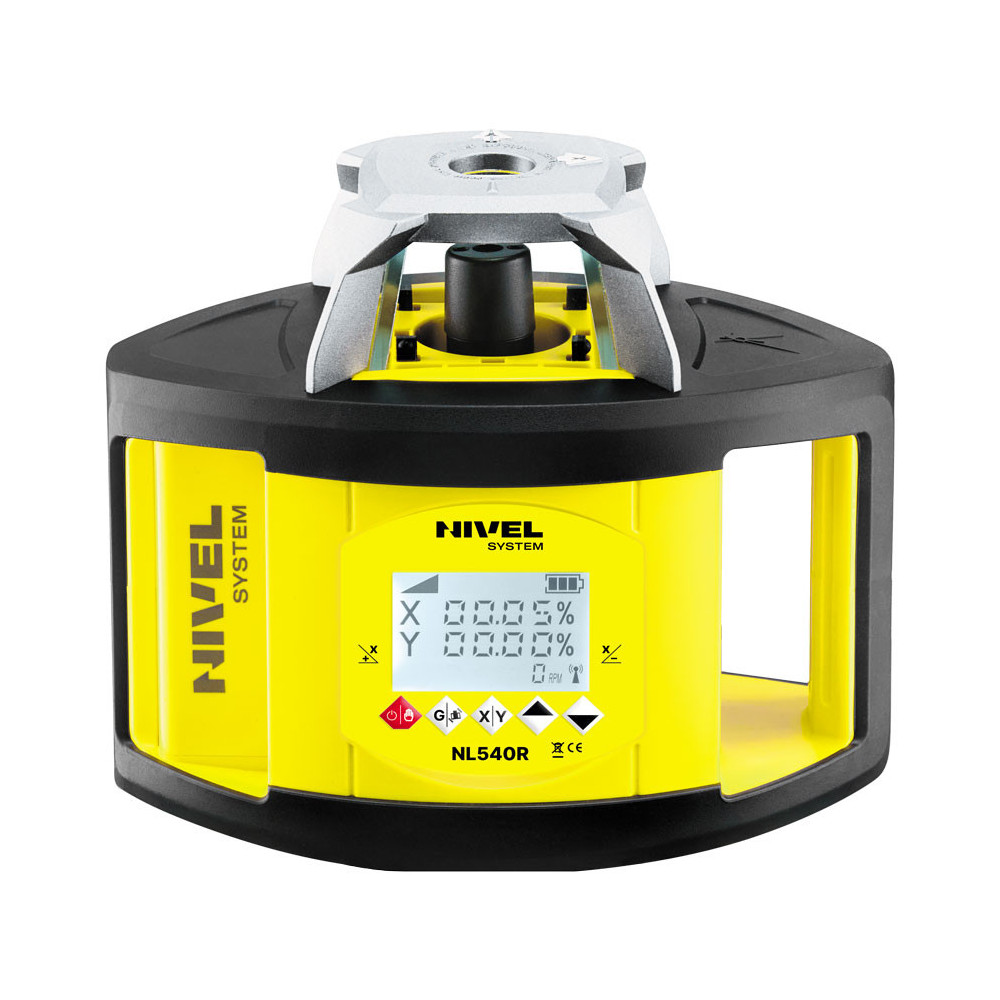

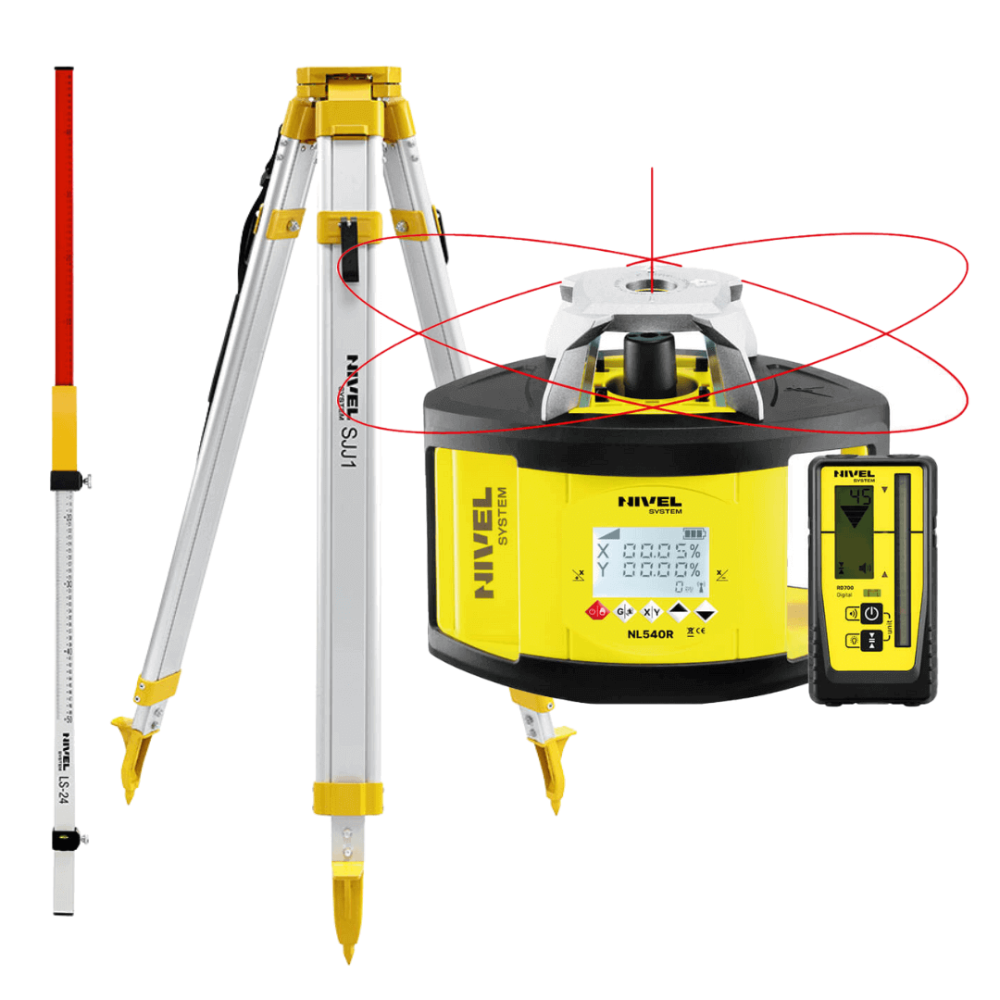

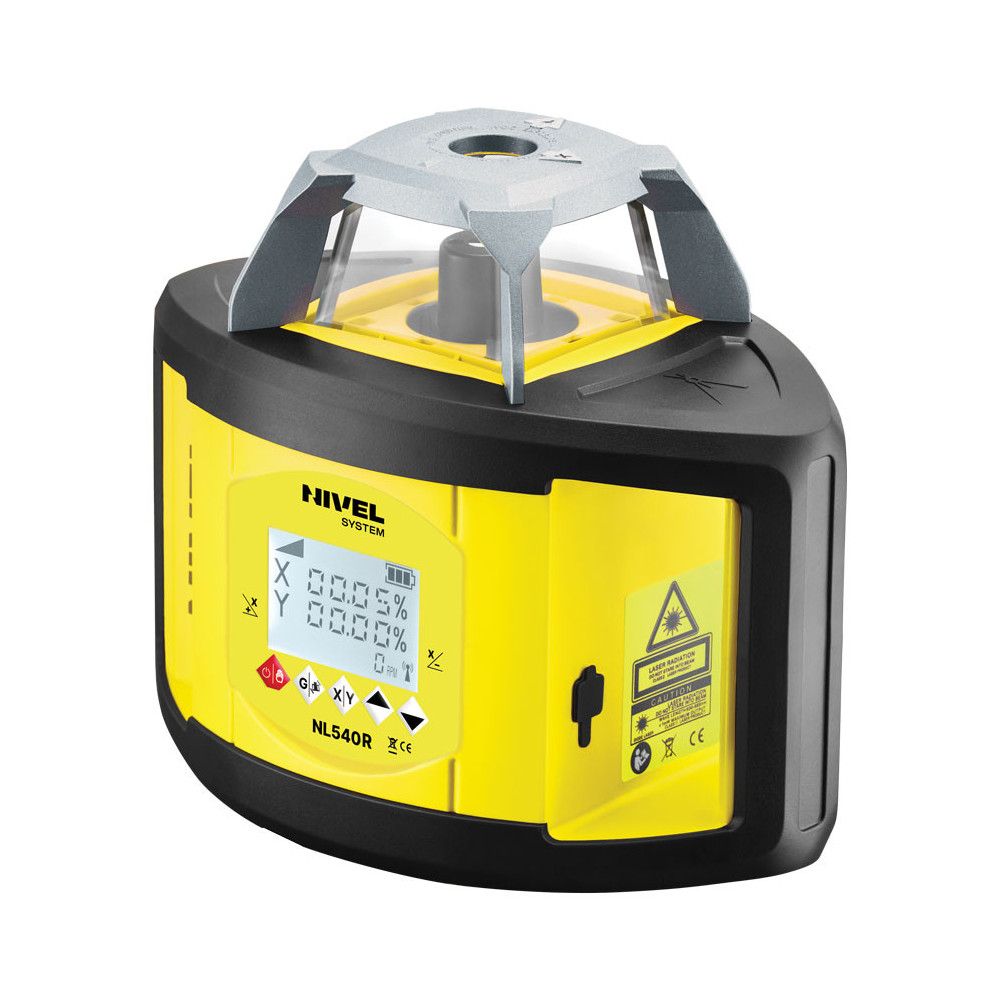

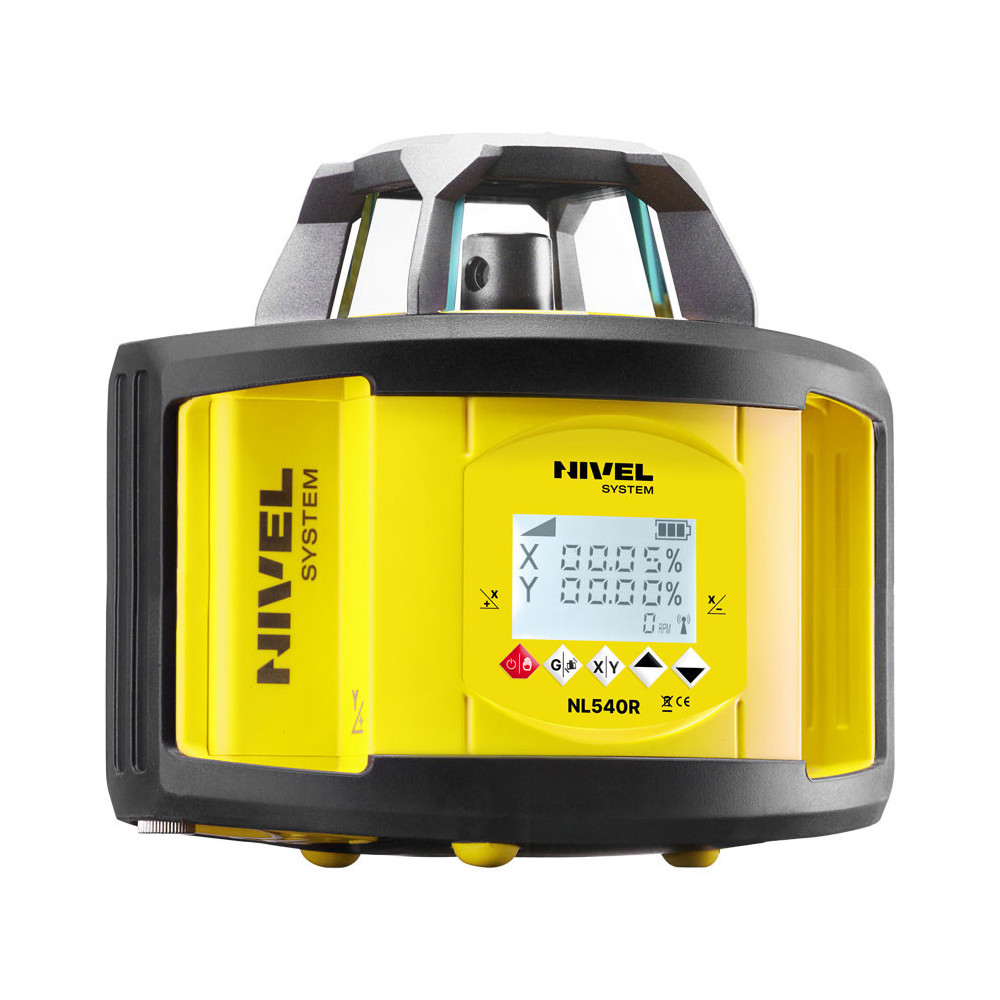

KIT Nivel System NL540R Digital laser leveler + SJJ1 tripod + LS-24 staff

Reference

NL540R-DIGITAL-zestaw1
Delivery icon

Availability

1
Delivery icon

Time to ship

17h 35m 17s
Delivery icon
No information available

Technical Data

  • Weight: 3 kg
  • Dimensions: 206 x 206 x 211 mm
  • Brand: Nivel System
  • Power supply: 7,4 V (Li-ion, 4000 mAh)
  • Operating temperature range: -20 °C do +50 °C
Full Specifications keyboard_arrow_down
zł5,467.00 tax incl. 4444,72 zł tax excl.
Loading...
PKO Leasing Widget
Loading...
PKO Leasing Widget
In installments from: 109,34 zł

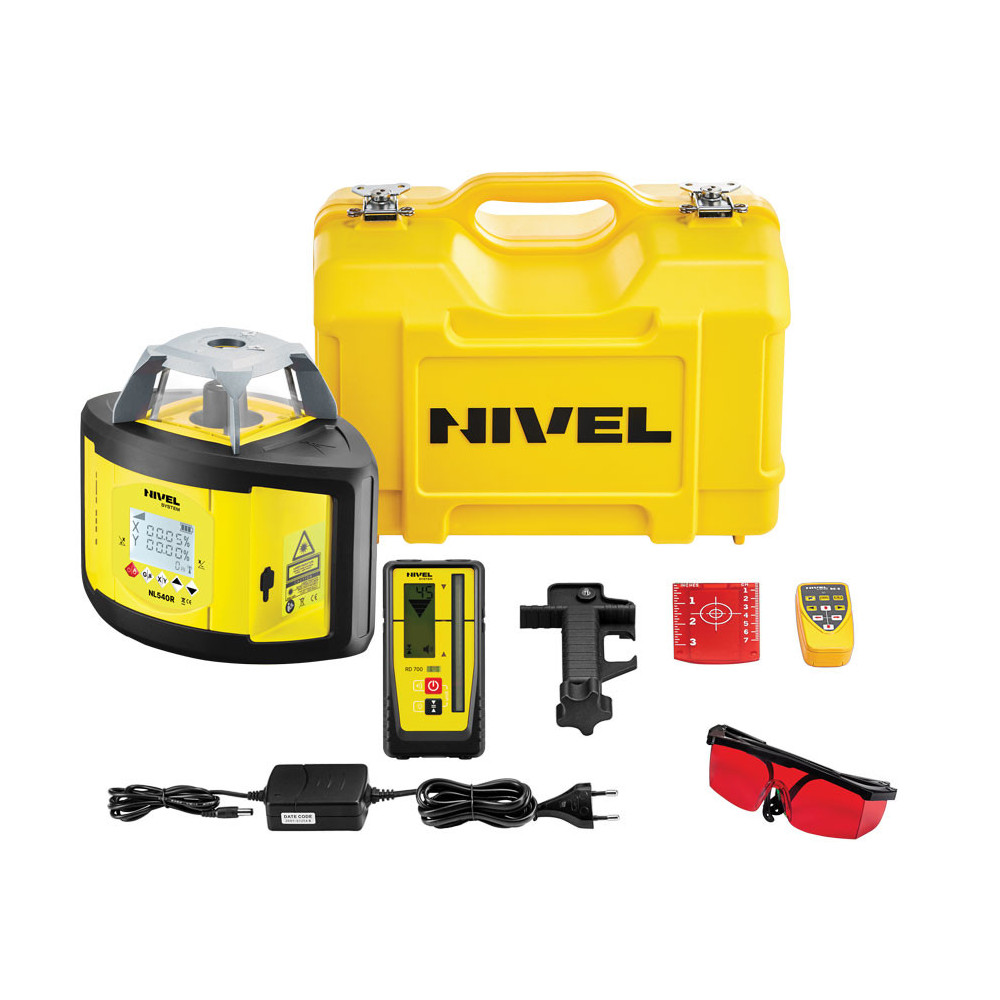

This pack contains

Delivery icon

Availability

1
Ikona dostawy

Time to ship

17h 35m 16s
Delivery icon
No information available

Technical Data

  • Weight: 3 kg
  • Dimensions: 206 x 206 x 211 mm
  • Brand: Nivel System
  • Power supply: 7,4 V (Li-ion, 4000 mAh)
  • Operating temperature range: -20 °C do +50 °C
Full Specifications keyboard_arrow_down
Loading...
PKO Leasing Widget
In installments from: 109,34 zł
Loading...
PKO Leasing Widget

Po raz kolejny zdobyliśmy
Gazelę Biznesu- dziękujemy Wam!

Free delivery over PLN 1,500

24 years on the market

Own warehouse 1200 m²

Returns up to 14 days

You might also like

KIT Nivel System NL540R Digital laser leveler + SJJ1 tripod + LS-24 staff - precision and performance in one.

Discover a new quality of measurement with the Nivel System NL540R Digital - a versatile set that is ideal for construction, surveying and other demanding technical industries. With high leveling accuracy of ± 1.0 mm/10 m, reliability and ease of use, this laser leveler meets the expectations of the most demanding professionals. It also comes with an SJJ1 tripod and LS-24 staff, providing a full range of capabilities right out of the box.

Compact solution with modern features

The Nivel System NL540R Digital is distinguished by its robust design with dimensions of 206 x 206 x 211 mm and a weight of just 3 kg, which makes it easy to transport and work in difficult field conditions. Equipped with a type of laser beam: red (635 nm), class 2, it provides precise measurements within a radius of 500 m (diameter). Thanks to its IP54 rating, the device is resistant to dust and rain, guaranteeing reliability in any situation.

Advanced technology enables the device to generate 1 horizontal plane (360°) and 1 vertical plane (360°), enhancing work efficiency. The function of tilting the planes ± 10% on the X and Y axes, as well as the automatic self-leveling range of ± 5° make it easy to position the device accurately in the most difficult conditions. The laser works with the RD 700 receiver for maximum flexibility of operation.

The built-in 7.4V lithium-ion rechargeable battery ( 4000 mAh) guarantees long operating time, while the variable head spinning speed function (up to 600 rpm) and 0°-10°-45°-90°-180° scanning option allow precise customization of the device. The included remote control makes operation of the leveler even simpler and more convenient, minimizing the time and effort required to take measurements.

KIT Nivel System NL540R Digital laser leveler + SJJ1 tripod + LS-24 staff - available at NORWIT.PL!

Choosing a product in NORWIT.PL store, you get the assurance of high quality, professional advice and warranty service. Check also other products in the category Levelers measurements and find the perfect solution for your needs! Order a set now and increase the efficiency of your work!

NL540R-DIGITAL-zestaw1
1 Item

Data sheet

Weight
3 kg
Dimensions
206 x 206 x 211 mm
Brand
Nivel System
Power supply
7,4 V (Li-ion, 4000 mAh)
Operating temperature range
-20 °C do +50 °C
Leveling accuracy
± 1,0 mm / 10 m
Self-leveling range
+/- 5°
Slope of the planes
± 10% (oś x, oś y), cyfrowe
Generated planes
1 x poziomo (360°), 1 x pionowo (360°)
Working range
500 m (średnica)
Type of laser beam
Laser czerwony (635 nm), klasa 2
Resistance class
Ip54
Kolor lasera
Red
Cooperation with the receiver
Rd 700
Scanning
0-10°-45°-90°-180°
Head spin speed
Zmienna, maks. 600 obr./min
Remote control
Tak

Gwarancja Nivel System: 12 miesięcy ochrony z możliwością przedłużenia

Firma Nivel System oferuje swoim klientom 12 miesięcy ochrony gwarancyjnej na wszystkie swoje produkty. Dodatkowo, istnieje możliwość przedłużenia gwarancji do 2 lat po zarejestrowaniu produktu. Dzięki temu, użytkownicy mogą cieszyć się jeszcze dłuższym okresem niezawodności i wsparcia technicznego.

Roczna gwarancja obejmuje wszystkie komponenty i podzespoły, a rejestracja produktu pozwala na wydłużenie ochrony do 24 miesięcy. To dodatkowe zabezpieczenie zapewnia bezproblemowe użytkowanie przez dłuższy czas.
