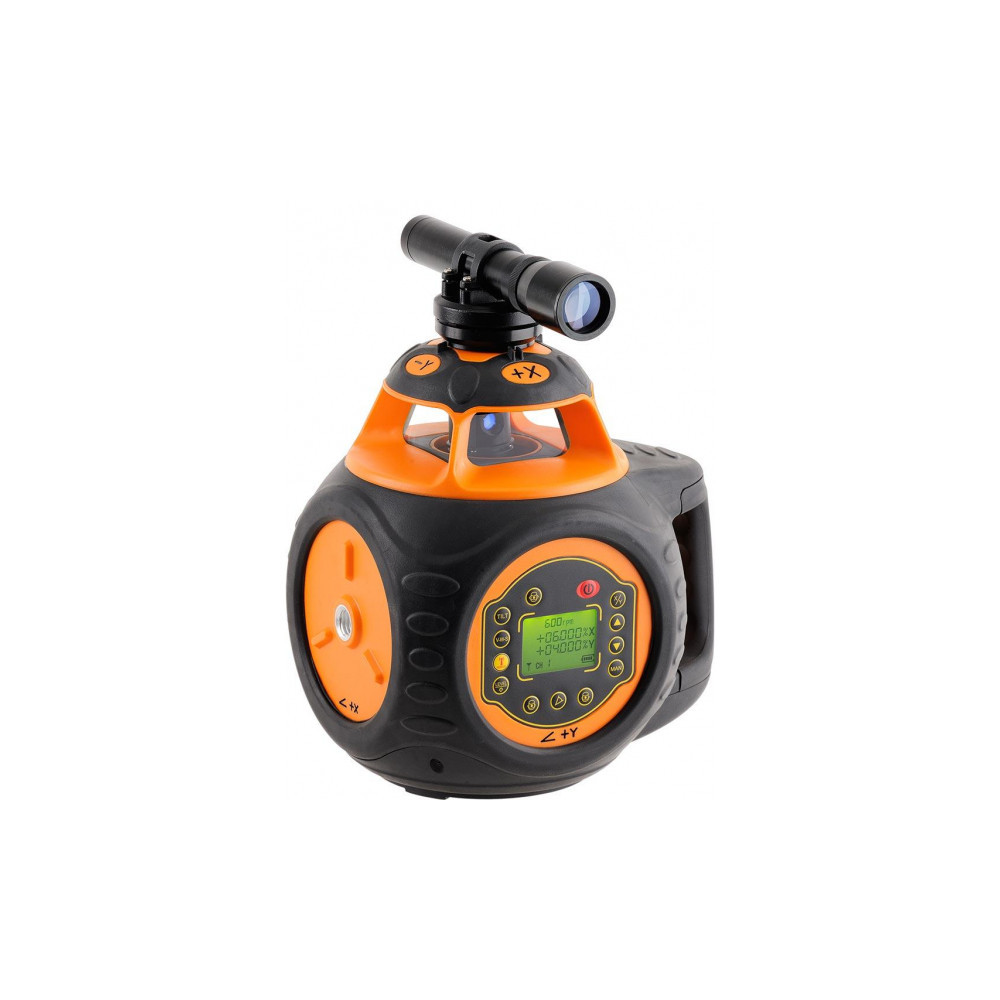

Geo-FENNEL FL 505HV-G MM self-levelling rotating laser level
Reference
12-267-31
Reference
Availability
Technical Data
- Weight: 3,85 kg
- Dimensions: 36 x 47 x 25
- Brand: Geo-Fennel
- Operating temperature range: -10 °C – +50 °C
- Operating time - battery set: 40 h
Geo-FENNEL FL 505HV-G MM self-leveling rotary laser level - high precision in all conditions
The geo-FENNEL FL 505HV-G MM rotary laser leveler is a reliable all-rounder, ideal for construction and surveying professionals. This high-precision equipment provides excellent work efficiency indoors and outdoors, making it ideal for both large and smaller projects. The self-leveling mechanism guarantees fast and accurate measurements, saving time and eliminating errors.
Compact solution with modern features
The leveler is distinguished by its compact dimensions of 36 x 47 x 25 cm and low weight of just 3.85 kg, making it easy to transport and handle on the construction site. The automatic leveling range is ± 8°, allowing the device to be quickly and accurately positioned even in difficult terrain conditions. Equipped with a laser diode with a wavelength of 635 nm, the geo-FENNEL FL 505HV-G MM features very high operating accuracy - ± 0.5 mm / 10 m.
Thanks to its IP66 rating, the leveler is resistant to dust and water, making it ideal for use in harsh weather conditions - from -10°C to +50°C. Powered by 3 x D alkaline batteries and an optional Li-ion rechargeable battery, it offers up to 40 hours of continuous operation, significantly increasing its performance on the construction site. The laser has a Class 2 safety rating, ensuring complete safety of use.
Geo-FENNEL FL 505HV-G MM rotary laser leveler - available at NORWIT.PL!
Geo-FENNEL FL 505HV-G MM rotary laser leveler is an investment in reliability and precision, which you can purchase at NORWIT.PL store, one of the leaders in the distribution of construction and surveying equipment in Poland. When you buy from us, you gain access to expert service and a full warranty on the equipment you purchase. See also other products in the rotary laser levels category!
Data sheet
- Weight
- 3,85 kg
- Dimensions
- 36 x 47 x 25
- Brand
- Geo-Fennel
- Operating temperature range
- -10 °C – +50 °C
- Operating time - battery set
- 40 h
- Instrument accuracy
- ± 0,5 mm / 10 m
- Enclosure watertightness class
- IP 66
- Laser safety class/wavelength
- 2/635 nm
- Battery power supply
- 3 x D alkaliczne
Li-ion - Range of leveling automation
- ± 8°
- Laser diodes number/wavelength
- 1/635 nm
