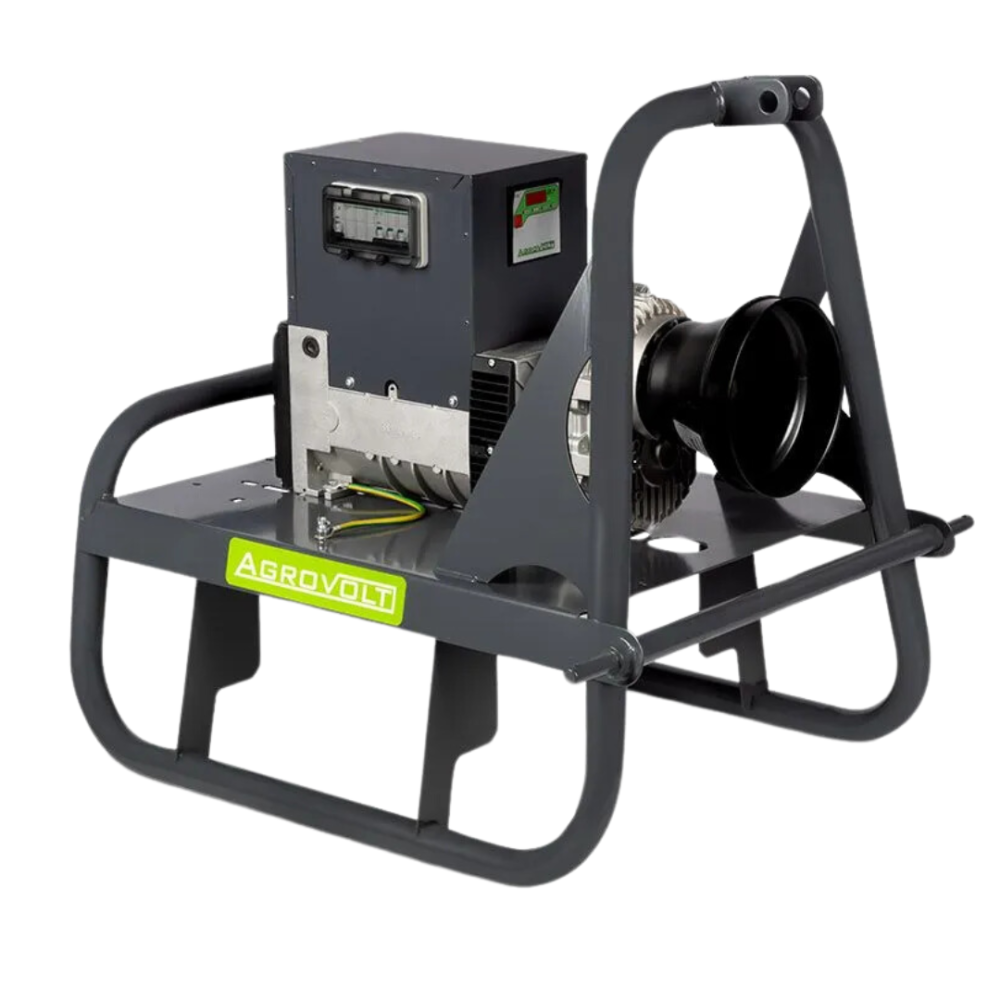

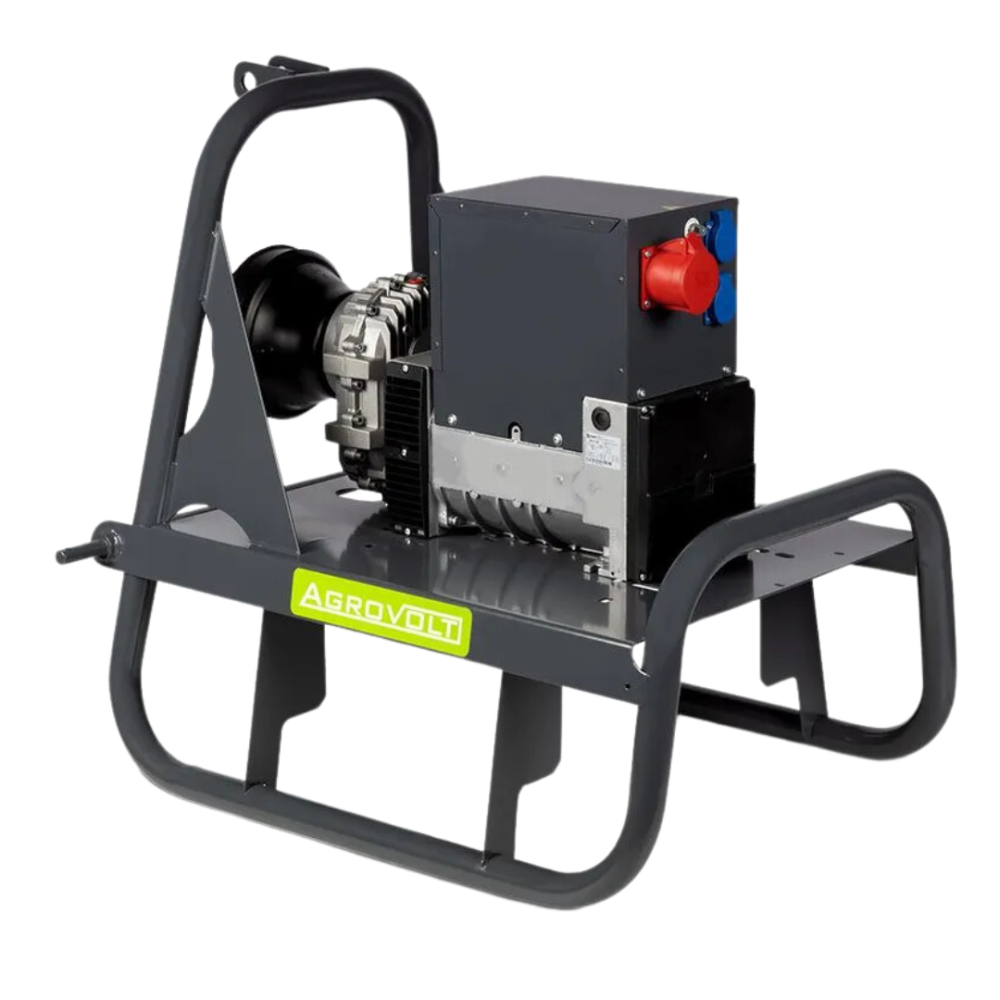

FOGO AGROVOLT AV 22 tractor PTO generator set
Reference
AV 22
Reference
Availability
Technical Data
- Weight: 133 kg
- Voltage: 400/230 V
- Power 1~ max / znam: 8,8 kW
- Power category: 12,5 - 19,5 [kVA] 400 V
- Power 3~ max / znam: 22 kVA / 17,6 kW
FOGO AGROVOLT AV 22 PTO tractor generator - reliability and high performance
The FOGO AGROVOLT AV 22 generator set is the ideal solution for farmers and users looking for a reliable power source controlled via a tractor. Thanks to its versatility and robust design, it ensures continuous operation on the farm or construction site. Equipped with key features such as high efficiency, no AVR stabilization and adaptation to the wide range of power generated by the PTO, the unit provides optimal performance with low energy consumption.
Compact solution with high power - efficiency in all conditions
Built for intensive operation, the FOGO AGROVOLT AV 22 is distinguished by its 400/230V voltage, which allows for versatile use on the farm, including in areas with high energy demand. The 3~ rated power output is 17.6 kW, with the maximum value reaching 22 kVA, which guarantees a stable and efficient power source during agricultural and technical work.
Thanks to its extremely reasonable tractor requirements - the suggested tractor power is only 60 hp, and the power at the PTO is 30.4 hp - the unit allows full use of its capabilities even in smaller agricultural vehicles. The unit operates at an optimal PTO speed of 428 rpm, which contributes to smooth and efficient operation. The whole unit is enclosed in a sturdy but relatively lightweight housing weighing 133 kg, which makes it a portable but extremely durable working tool.
FOGO AGROVOLT AV 22 - available at NORWIT.PL!
Order FOGO AGROVOLT AV 22 in NORWIT.PL store and take advantage of full warranty service and fast delivery! FOGO AGROVOLT AV 22 is a guarantee of reliability and efficiency on your farm. Check also other aggregates for tractors in our offer!
Data sheet
- Weight
- 133 kg
- Voltage
- 400/230 V
- Power 1~ max / znam
- 8,8 kW
- Power category
- 12,5 - 19,5 [kVA] 400 V
- Power 3~ max / znam
- 22 kVA / 17,6 kW
- Avr voltage stabilization
- Nie
- Suggested tractor power
- 60 KM
- Power to the wom
- 30,4 KM
- Wom rotation
- 428 obr./min
Specific References
- EAN13
- 0000000014091
Gwarancja Fogo: 12 miesięcy ochrony z możliwością przedłużenia
Firma Fogo oferuje 12 miesięcy standardowej gwarancji na swoje produkty. Dodatkowo, dla agregatów Agrovolt istnieje opcja przedłużenia gwarancji do 2 lat, a dla agregatów z silnikiem Honda i Briggs & Stratton do 3 lat. To elastyczne rozwiązanie zapewnia dłuższą ochronę i pewność użytkowania.
Możliwość przedłużenia gwarancji to dodatkowy atut, który gwarantuje bezproblemowe użytkowanie przez dłuższy czas.
