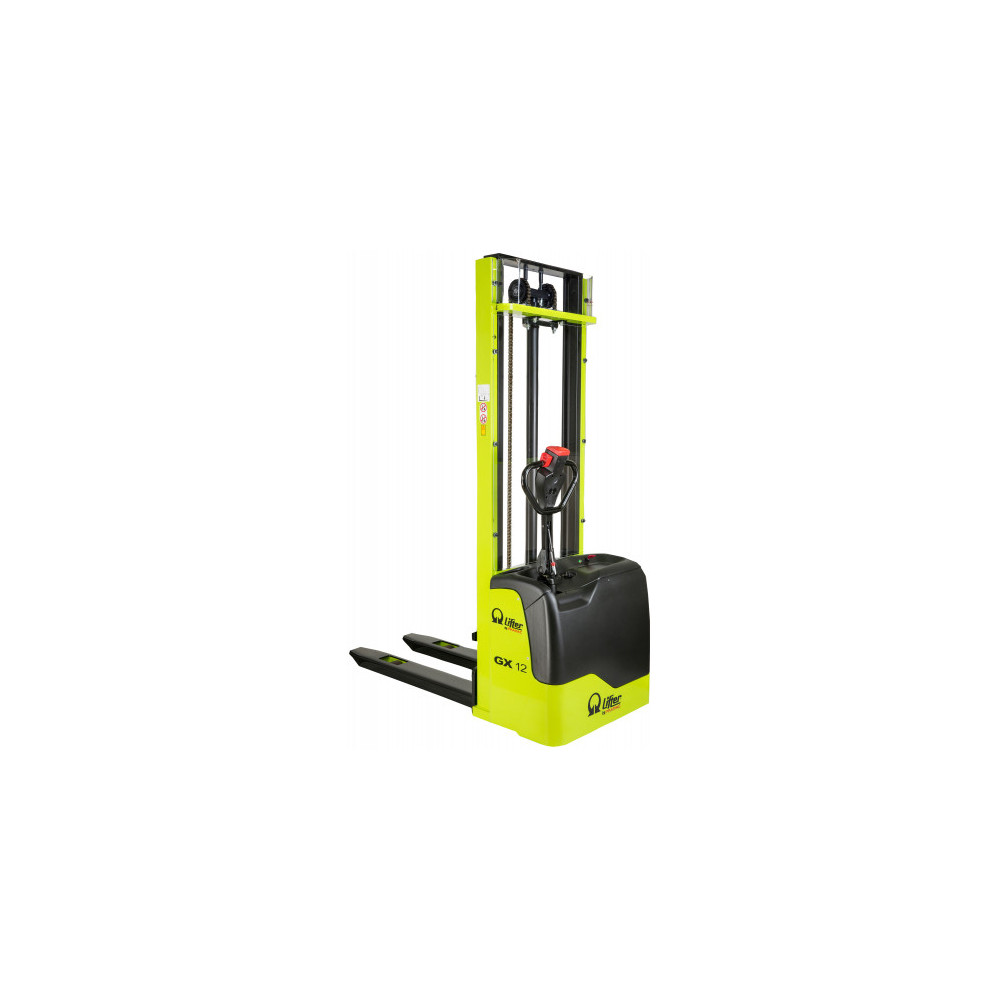

Electric stacker LIFTER BY PRAMAC GX 12/35 EVO GEL 1150X560
Reference
HM71230P000
Reference
Availability
Technical Data
- Engine power: 0,7 kW / 0,9 KM
- Voltage: 24 V (akumulatora)
- Drive: Elektryczny
- Turning radius: 1430 mm
- Width: 800 mm
Electric LIFTER BY PRAMAC GX 12/35 EVO GEL 1150X560 paver - performance and maneuverability for maximum efficiency
The LIFTER BY PRAMAC GX 12/35 EVO GEL 1150X560 electric stacker is a versatile tool for a variety of tasks in warehouses and production spaces. Designed for pedestrian operators, the unit offers efficiency, precision and ease of maneuverability even in narrow aisles. Ideal for companies looking for reliable solutions for stacking goods at greater heights with complete stability and safety.
Compact solution with modern features
With a low turning radius of 1,430 mm and a total machine width of only 800 mm, the LIFTER BY PRAMAC GX 12/35 EVO GEL stacker allows for easy maneuvering in confined spaces such as warehouses and production halls. The unit is electrically powered, thanks to a 105 Ah, 24-volt battery ensuring reliable operation for long periods. Operator comfort is enhanced by an efficient 0.7 kW (or 0.9 hp) drive.
The stacker features a high load capacity of up to 1,200 kg and a maximum lifting height of up to 3,410 mm for goods. This is ideal for moving and stacking heavy loads at various heights, without worrying about the stability or safety of the operation.
The mast in the lowered position reaches a height of 2250 mm, which allows the unit to be stored efficiently, and the forks, measuring 1150 mm in length and 150 mm in width, are perfect for manipulating a variety of loads with a width gauge of 560 mm. The width of the working aisle is a compact 2210 mm, making this stacker extremely versatile and flexible in areas with limited space.
The successful combination of conveying speeds - 4.7 km/h with load and 5.2 km/h without load - enhances operational efficiency, making the stacker ideal for intensive warehouse environments.
LIFTER BY PRAMAC GX 12/35 EVO GEL 1150X560 - available at NORWIT.PL!
Choose electric stacker LIFTER BY PRAMAC GX 12/35 EVO GEL in NORWIT.PL store and take advantage of our professional warranty service and competitive prices! Trust proven solutions to improve your warehouse operations. Also check out other products in the Warehousing Stacking category and choose the perfect equipment for your business!
Data sheet
- Engine power
- 0,7 kW / 0,9 KM
- Voltage
- 24 V (akumulatora)
- Drive
- Elektryczny
- Turning radius
- 1430 mm
- Width
- 800 mm
- Battery
- 105 Ah
- Length
- 1760 mm
- Payload
- 1200 kg
- Maximum lift height
- 3410 mm
- Fork-length dimensions
- 1150 mm
- Height-mast lowered
- 2250 mm
- Fork dimensions-width
- 150 mm
- Working aisle width
- 2210 mm
- Loaded speed
- 4,7 km/h
- Unladen speed
- 5,2 km/h
- Distance between forks
- 560 mm
- Operator type
- Pieszy
