Construction laser Nivel System CL4D-B - KIT tripod SJJ-M1 EX sensor RD800 staff LS-24
Reference
CL4D-B-zestaw6
Reference
Availability
Technical Data
- Weight: 0,9 kg
- Dimensions: 125 x 75 x 140 mm
- Brand: Nivel System
- Power supply: 7,4 V (Li-ion, 2600 mAh)
- Operating temperature range: -10 °C do +50 °C
You might also like
-
Nivel System CLS-4 laser sensor
zł338.25 tax incl. 275,00 zł tax excl. -
Nivel System RD800 DIGITAL laser sensor
zł1,175.00 tax incl. 955,28 zł tax excl. -
Telescopic staff Nivel System LS-24
zł204.00 tax incl. 165,85 zł tax excl. -
Nivel System SJJ-M1 EX tripod
zł248.00 tax incl. 201,63 zł tax excl. -
Nivel System LP36 strut pole
zł278.00 tax incl. 226,02 zł tax excl. -
Spreader pole with tripod Nivel System LP-36 EX
zł478.47 tax incl. 389,00 zł tax excl.
Construction laser Nivel System CL4D-B - KIT tripod SJJ-M1 EX sensor RD800 years LS-24 - precision and reliability at the highest level

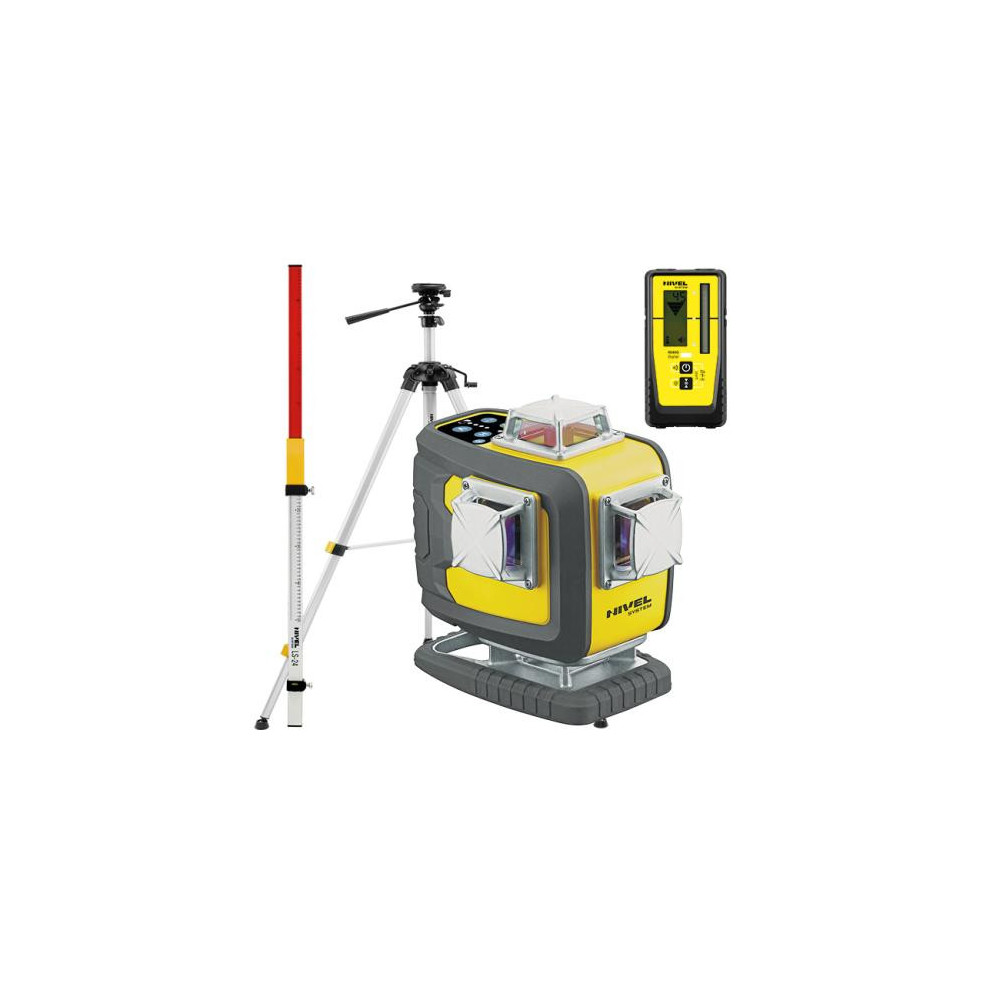

Nivel System CL4D-B construction laser is a versatile device dedicated to professionals in the construction, finishing and surveying industries. Thanks to its exceptional precision of operation and advanced features, this model will prove itself in demanding leveling and plotting tasks. The kit includes the SJJ-M1 EX tripod, RD800 sensor and LS-24 staffs to support efficient and effective work on the construction site.
Compact solution with modern features

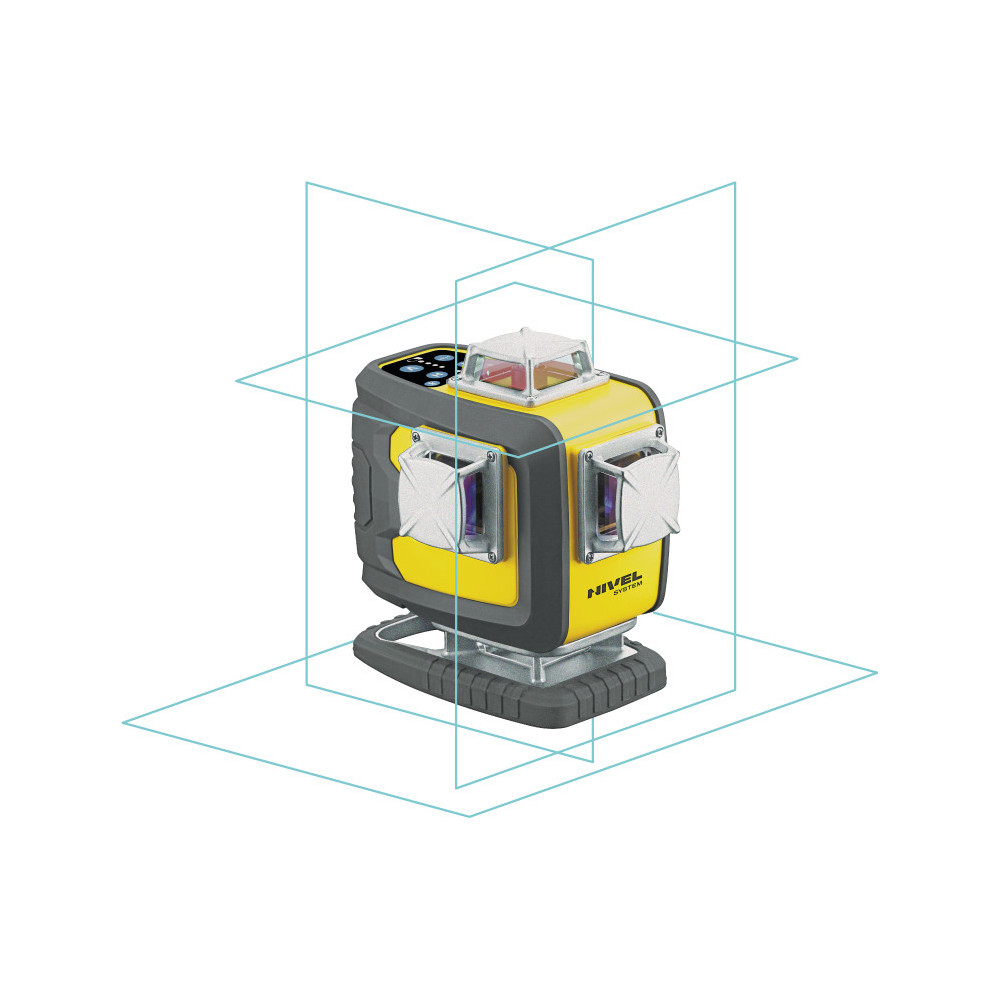

The Nivel System CL4D-B is distinguished by its compact dimensions of 125 x 75 x 140 mm and lightweight construction of 0.9 kg. Equipped with 4 360° laser lines, it allows precise determination of 2 horizontal planes (360°) and 2 vertical planes (360°). With an IP54 rating, the device is reliable in harsh conditions on construction sites, providing protection from dust and moisture.
Precise measurements are guaranteed by the leveling accuracy: ± 1.0 mm/10 m, and its working range reaches up to 60 m (or 140 m with sensor) in diameter. The device operates over a wide temperature range from -10°C to +50°C, making it reliable even in adverse weather conditions. Thanks to the self-leveling system: ±4° and the function of tilting planes, the laser offers maximum convenience in use.
The innovative blue laser beam (length 505 nm, class 2) provides better visibility in bright light for fast and error-free task completion. Compatibility with 1/4" tripod mount increases stability and measurement precision. The powerful 7.4V Li-ion, 2600 mAh battery guarantees long runtime and minimizes charging interruptions.
Nivel System CL4D-B construction laser - KIT available at NORWIT.PL!
By choosing products at NORWIT.PL, you benefit from professional service, warranty service and a wide range of accessories. Discover other Cross Lasers and find the perfect solution for your needs. Order now and enjoy the precision and efficiency of your work!
Data sheet
- Weight
- 0,9 kg
- Dimensions
- 125 x 75 x 140 mm
- Brand
- Nivel System
- Power supply
- 7,4 V (Li-ion, 2600 mAh)
- Operating temperature range
- -10 °C do +50 °C
- Leveling accuracy
- ± 1,0 mm / 10 m
- Self-leveling range
- ±4°
- Slope of the planes
- Tak
- Generated planes
- 2 x poziomo (360°), 2 x pionowo (360°)
- Tripod mount
- 1/4"
- Working range
- 60 m (140 m z czujnikiem) – średnica
- Type of laser beam
- Laser niebieski (505 nm), klasa 2
- Resistance class
- Ip54
- Kolor lasera
- Blue
- Number of laser lines 360
- 4 linie
Gwarancja Nivel System: 12 miesięcy ochrony z możliwością przedłużenia
Firma Nivel System oferuje swoim klientom 12 miesięcy ochrony gwarancyjnej na wszystkie swoje produkty. Dodatkowo, istnieje możliwość przedłużenia gwarancji do 2 lat po zarejestrowaniu produktu. Dzięki temu, użytkownicy mogą cieszyć się jeszcze dłuższym okresem niezawodności i wsparcia technicznego.
Roczna gwarancja obejmuje wszystkie komponenty i podzespoły, a rejestracja produktu pozwala na wydłużenie ochrony do 24 miesięcy. To dodatkowe zabezpieczenie zapewnia bezproblemowe użytkowanie przez dłuższy czas.
