Column for NORTON CDR 163 drilling rig
Reference
310468577
Reference
310468577
Availability
Technical Data
- Weight: 9,6 kg
- Dimensions: 280 x 460x 850 mm
- Drilling diameter: 40-160 mm
- Roll diameter: 160 mm
- Main module: 600 mm
Po raz kolejny zdobyliśmy
Gazelę Biznesu- dziękujemy Wam!
Free delivery over PLN 1,500
24 years on the market
Own warehouse 1200 m²
Returns up to 14 days

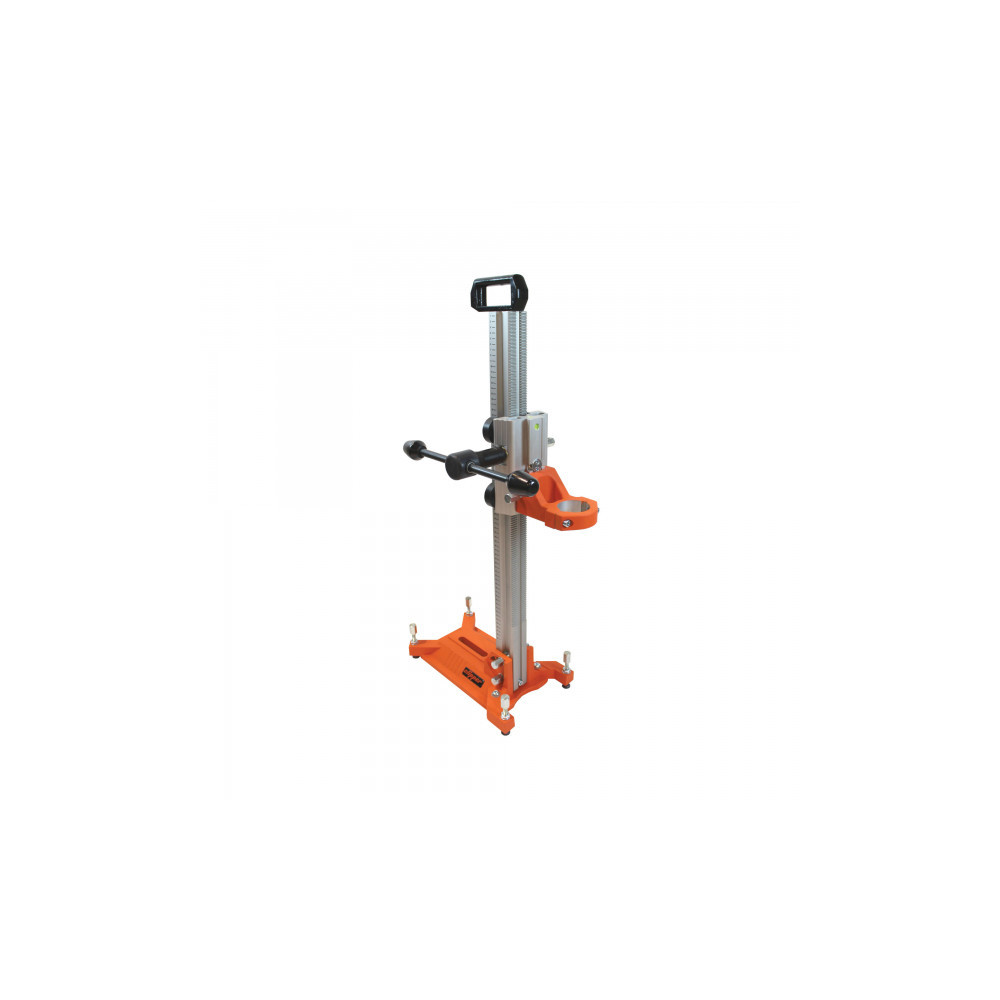

NORTON CDR 163 drill column - performance and precision
The NORTON CDR 163 drill column is a reliable solution dedicated to professionals and demanding users looking for precision and efficiency in their work. Thanks to its versatility and robust materials, it provides maximum performance when drilling in concrete, stone or other hard materials. Ideal for construction companies and installers expecting optimal performance in tough conditions.
Compact solution with modern features
The column is made of high-quality aluminum, providing exceptional durability and damage resistance while remaining lightweight. It weighs only 9.6 kg, which, combined with the ergonomic handle of the sliding element, allows easy maneuvering and positioning of the equipment. Its dimensions are 280 x 460 x 850 mm, making it compact while offering a wide range of drilling diameters from 40 mm to 160 mm.
The column has a sturdy design, with a drill attachment plate with a 60 mm diameter ring. The 0-45° tilt allows a variety of working angles, making it extremely versatile, and the roller-based guidance system ensures smooth and precise operation of the sliding element. The 600 mm long main module allows fine adjustment, giving users full control over the drilling process.
NORTON CDR 163 drill column - available at NORWIT.PL!
Buying Column for NORTON CDR 163 drilling rig in NORWIT.PL store, you get quality guarantee and service support. Take a look at our full offer in the Concrete Drilling Rig category, where you will find a range of products to suit your needs!
310468577
Data sheet
- Weight
- 9,6 kg
- Dimensions
- 280 x 460x 850 mm
- Drilling diameter
- 40-160 mm
- Roll diameter
- 160 mm
- Main module
- 600 mm
- Height
- 850 mm
- Leaning
- 0-45°
- Shift time
- 1
- Foot dimension
- 280 x 460 mm
- Column section
- 45 x 60 mm
- Column
- Aluminiowa
- Sliding element
- Aluminium
- Transport wheels
- Nie
- Supports
- Nie
- Level
- Nie
- Drill guide
- Nie
- Drill rig mounting plate
- Pierścień 60 mm
- Guide system sliding element
- Rolki
- Sliding element handle
- Tak
